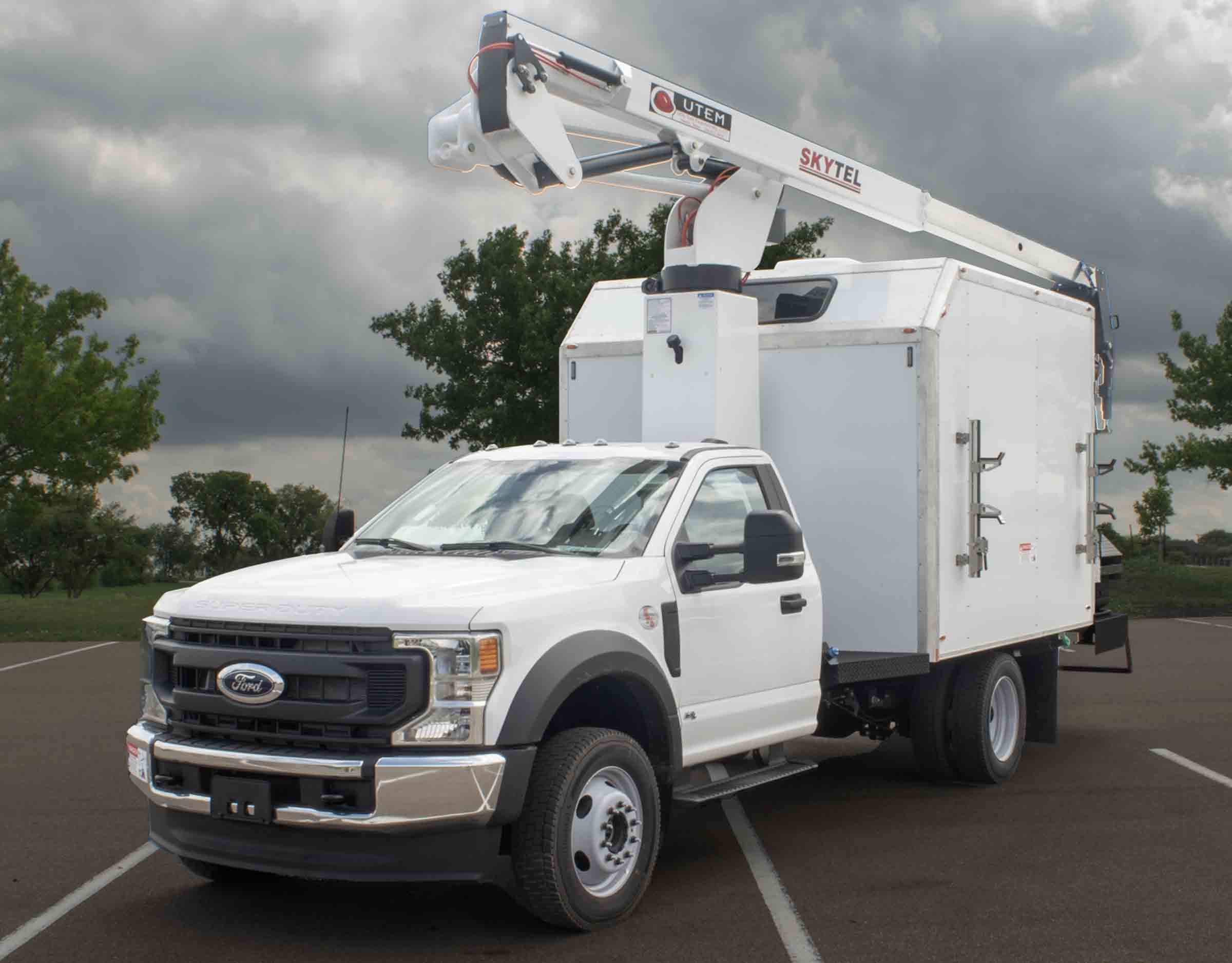

  • 45-f-light-copy-2.jpg

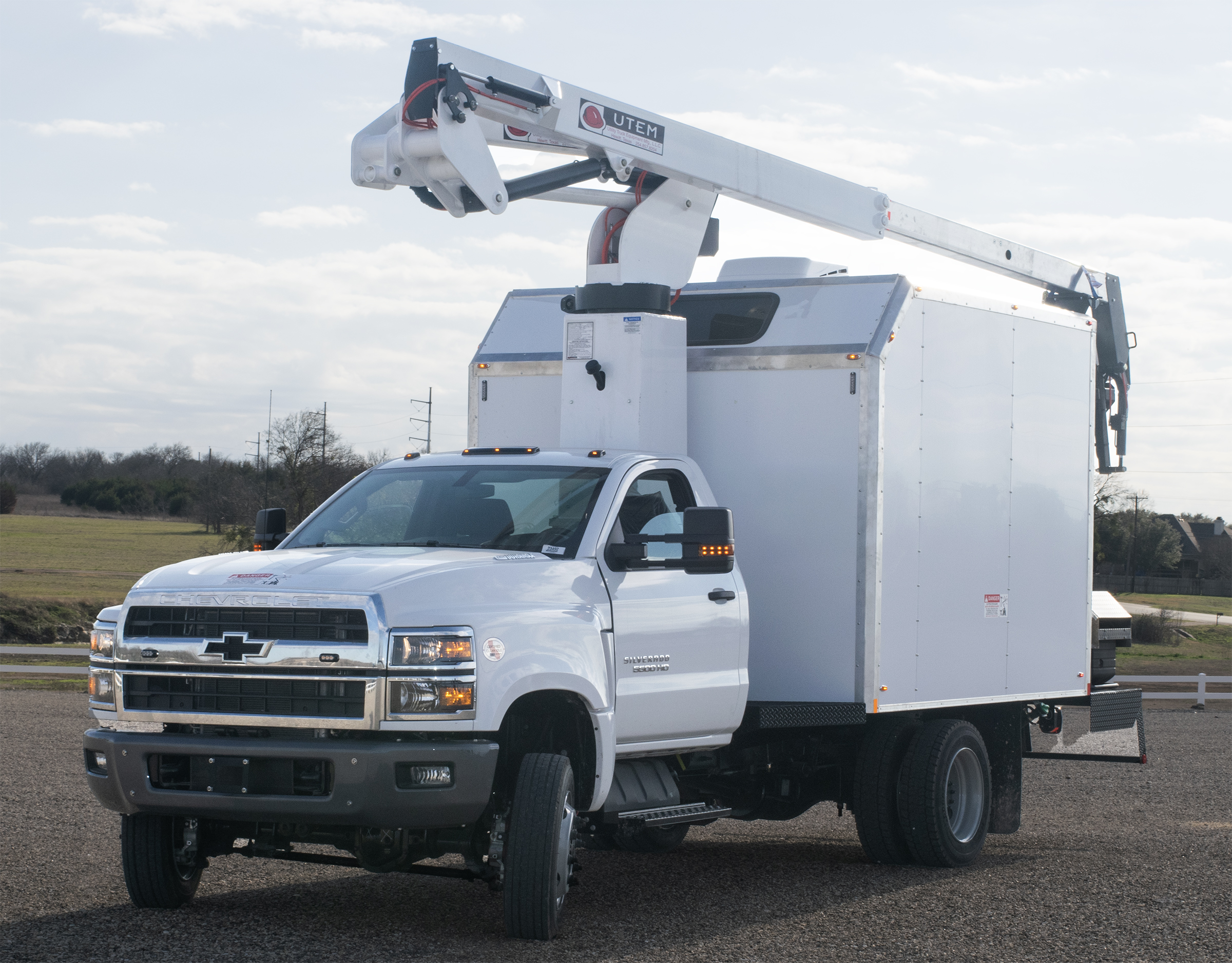

  • _dsc0462-copy.jpg
  • _dsc0083-copy.jpg

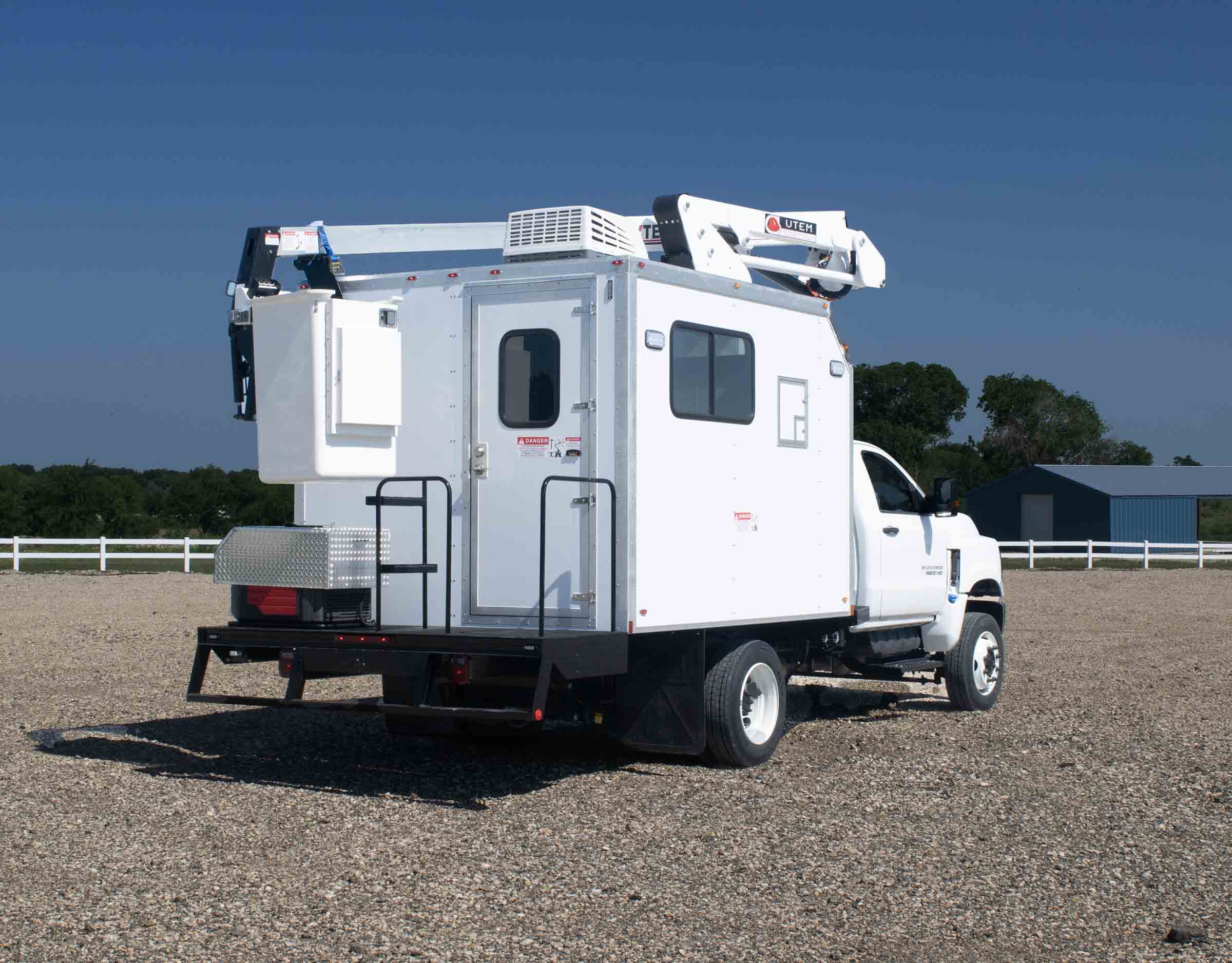

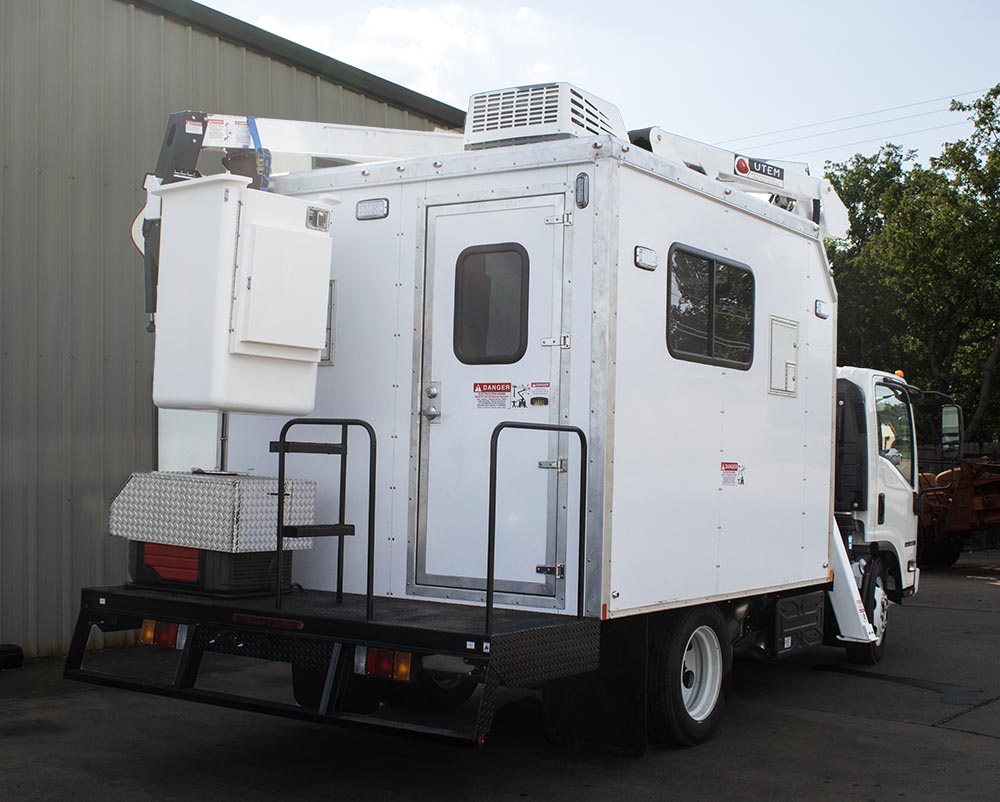

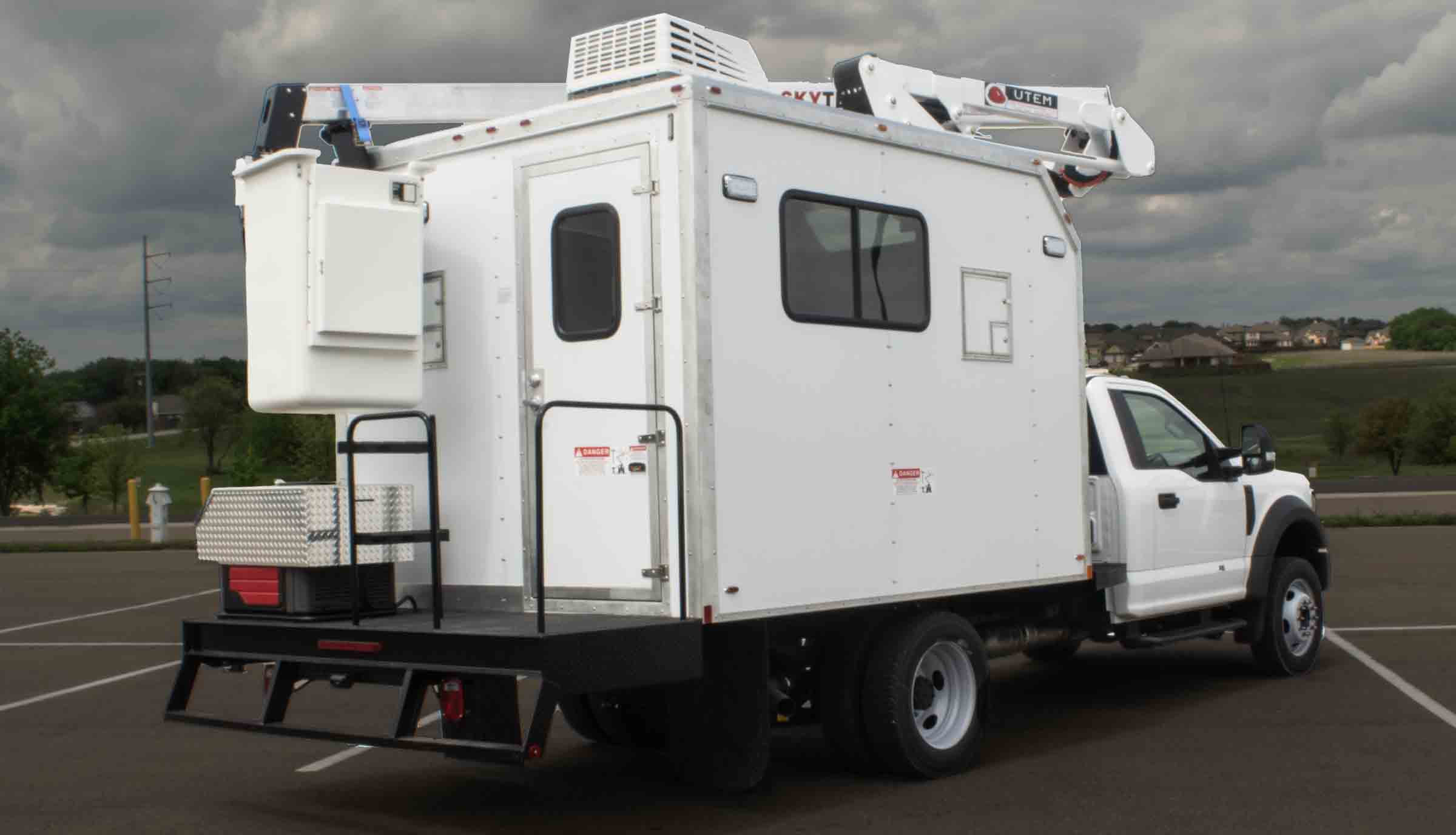

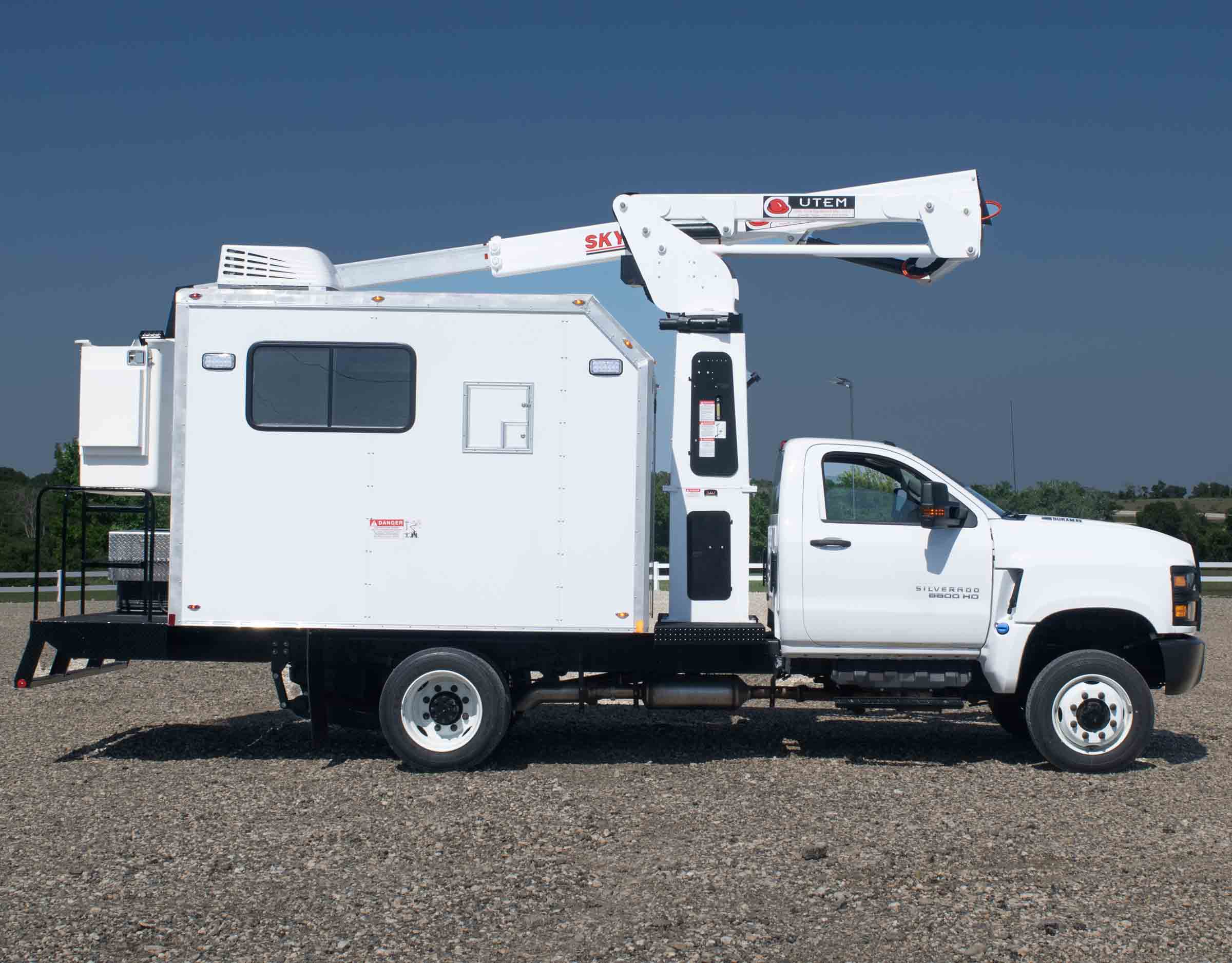

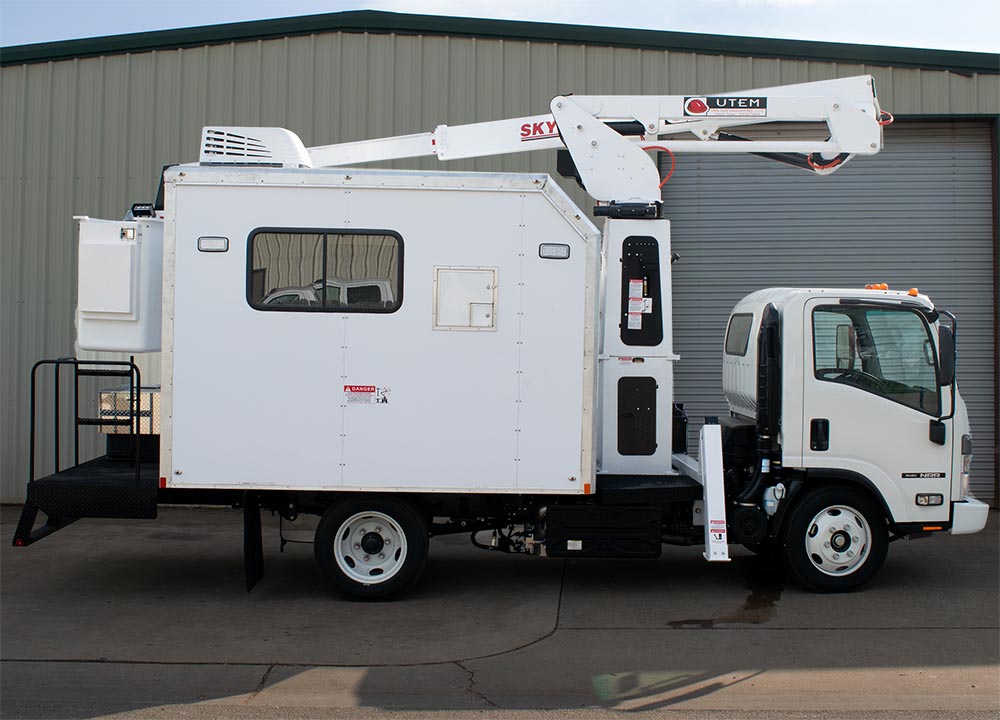

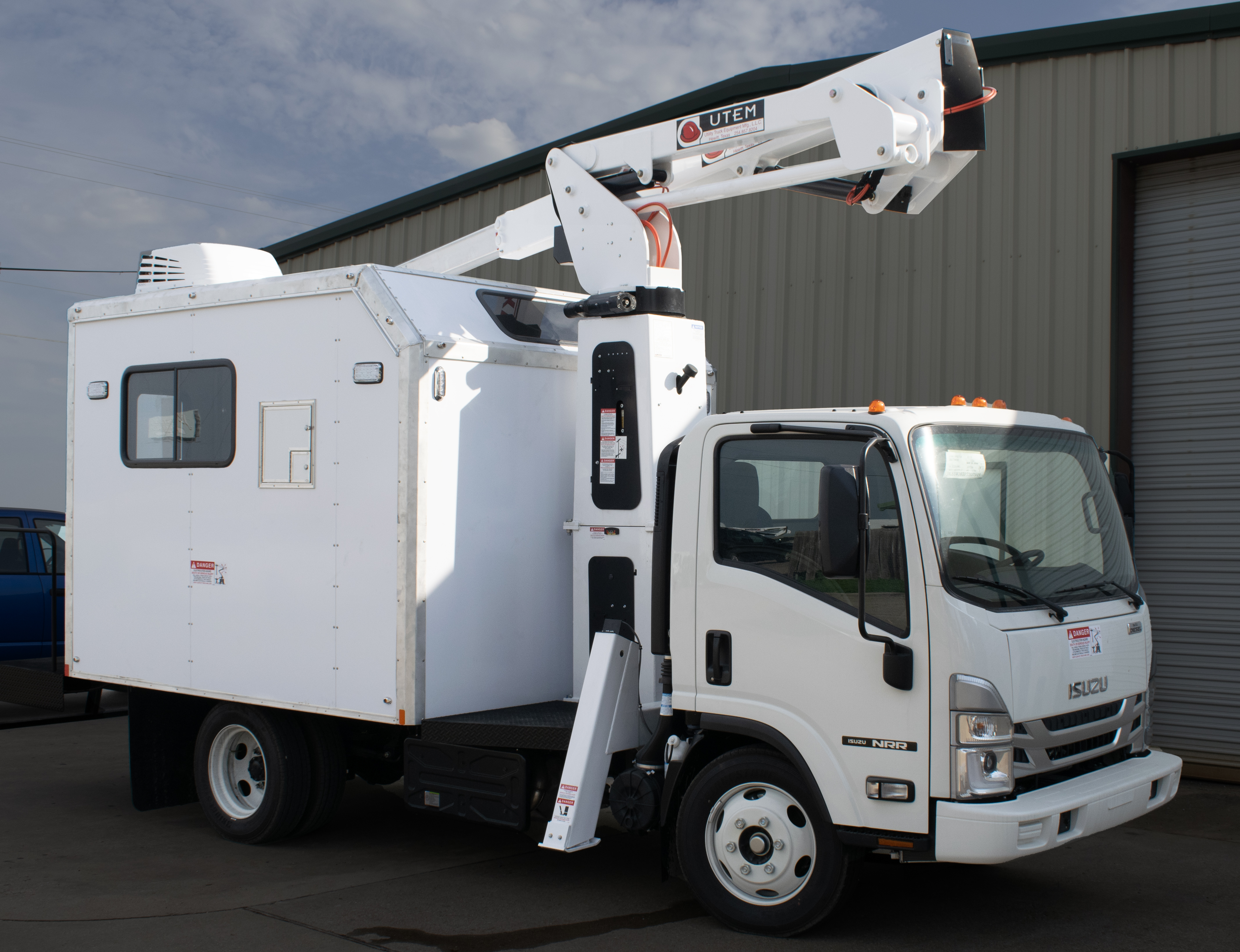

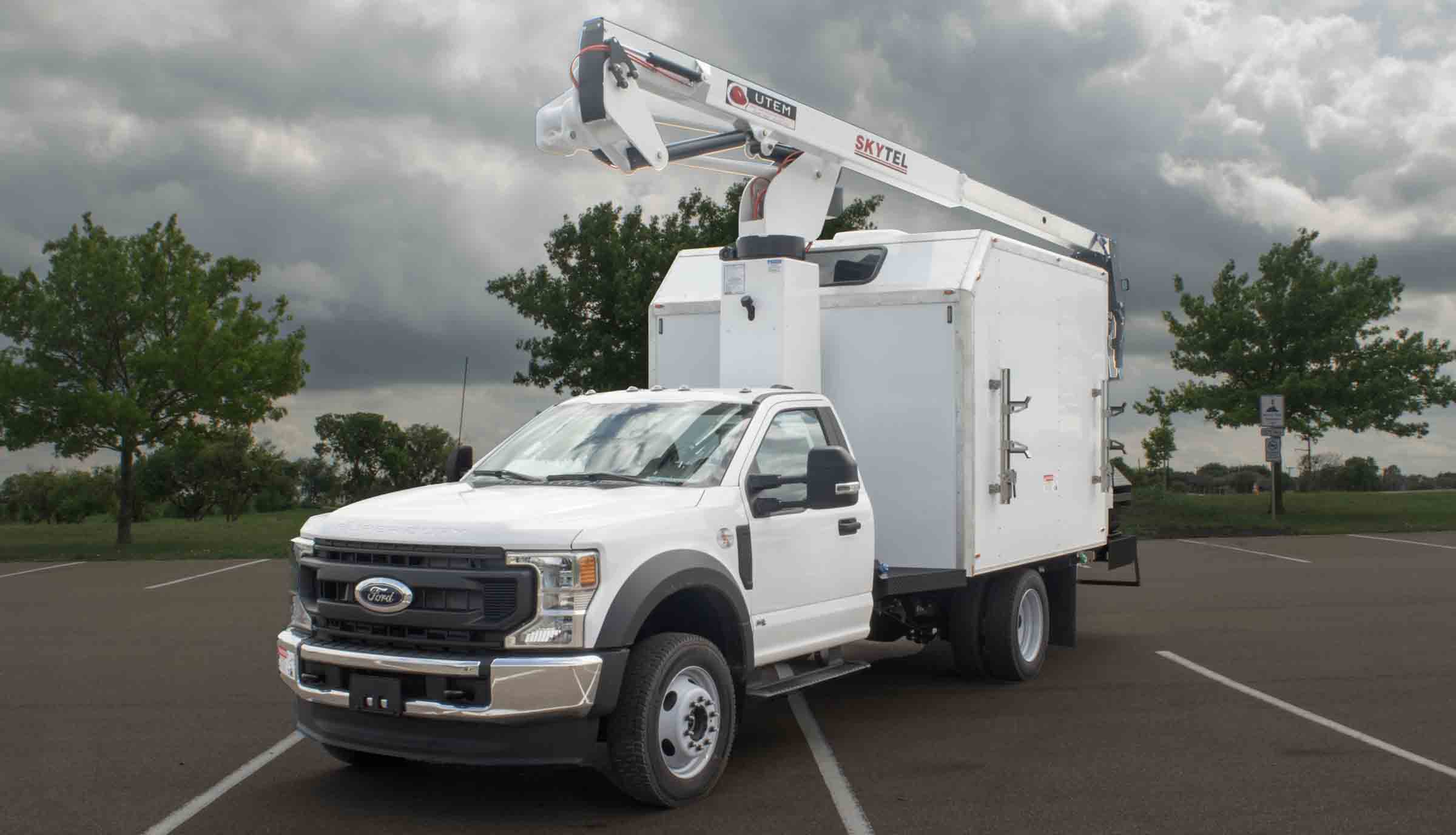

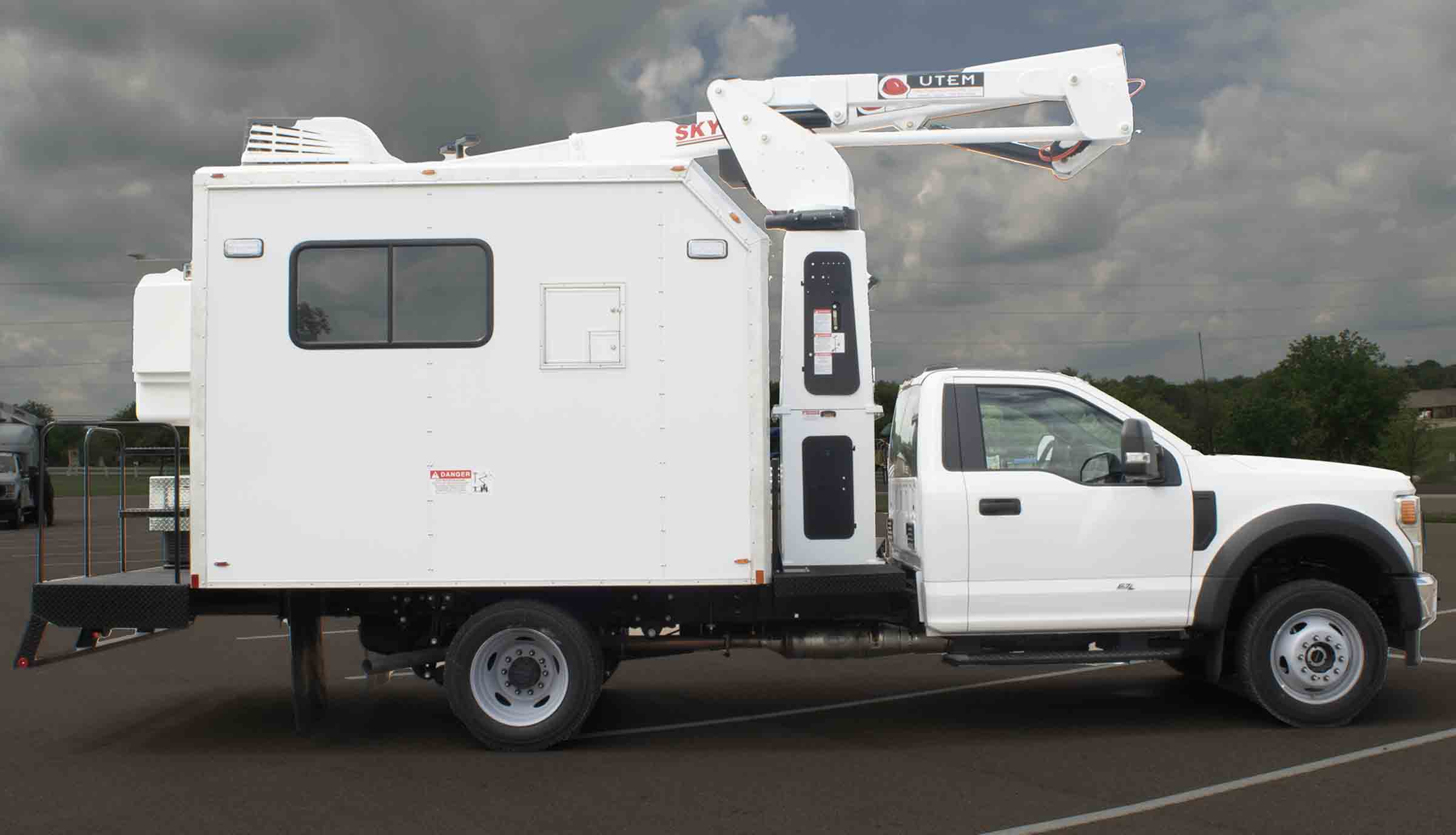

Aerial Splicing Chassis

The ASP's bigger brother


UTEC's combined aerial and splicing lab placed on a chassis cab with a working height of 43' 9".

Get a quote
Specifications
Interior
Exterior
PDF Download
Specifications

 General Specifications:

Height To Bottom Basket
Horizontal Side Reach
Working Height
Stowed Height
Rotation

38' 9" (11.8 m)
25' 4" (7.8 m)
43' 9" (13.3 m)
12' 9" (3.9 m)
540 Degrees

 Aerial Features:

  • 24V DC Powered Aerial
  • Electrical Tool Outlet at Basket
  • Emergency Lower 12V DC
  • Porportional Upper Controls w/ Single Handle Actuator
  • Side Mounted Walk-Thru Basket w/ Door
  • Lightweight Aluminum Inner Boom
  • Hydraulic Leveling Basket
  • Pedestal Riser Houses Hydraulic Reservoir and Batteries
  • UTLN35A meets and exceeds ANSI A92.2-2015 and OSHA Requirements

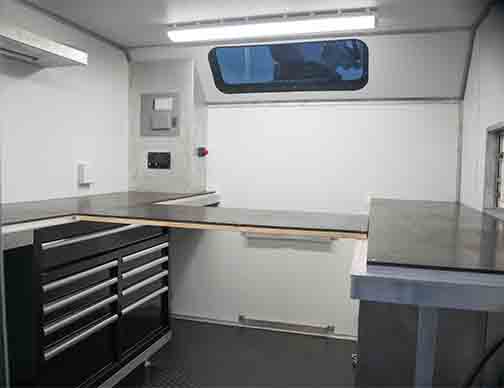

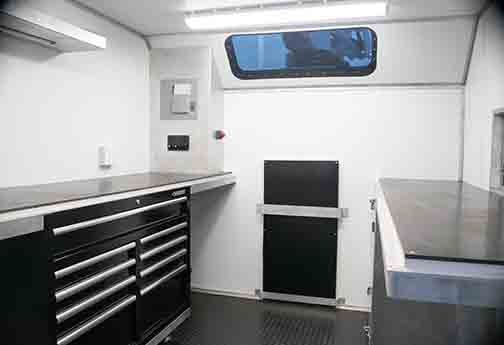

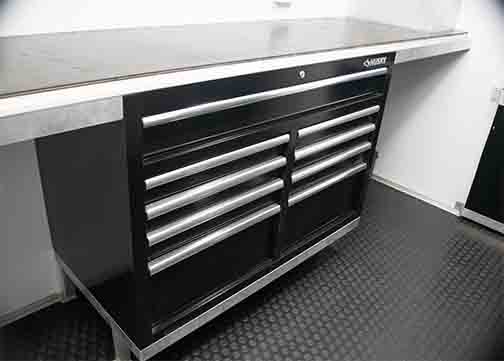

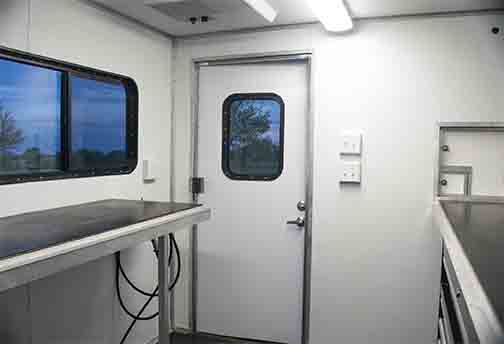

 Lab Features:

  • 6' 3" Inner Body Height
  • 505 Cubic Feet of Interior Space
