SkyJacker
The No-Nonsense Non-Overcenter

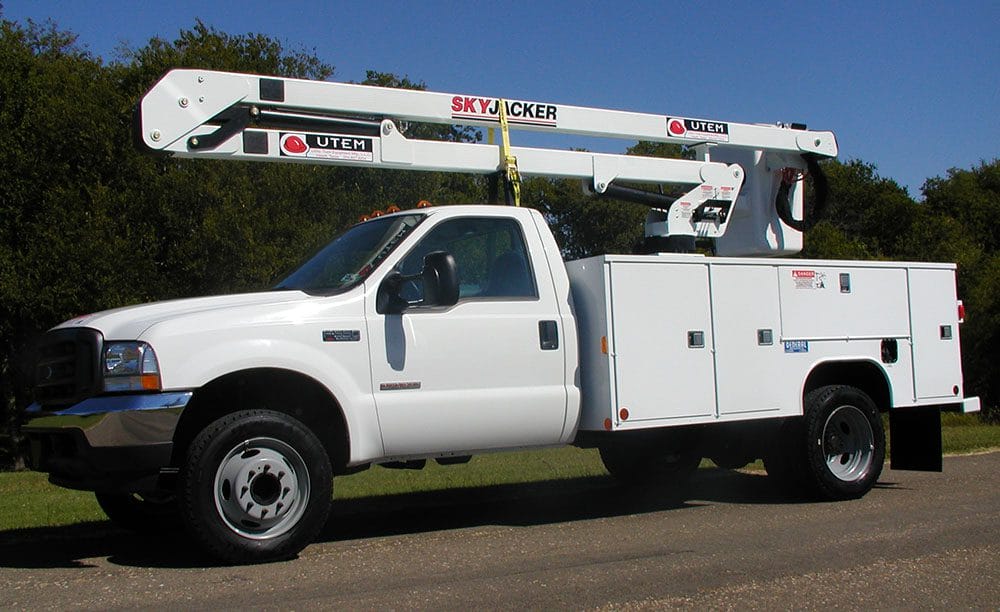

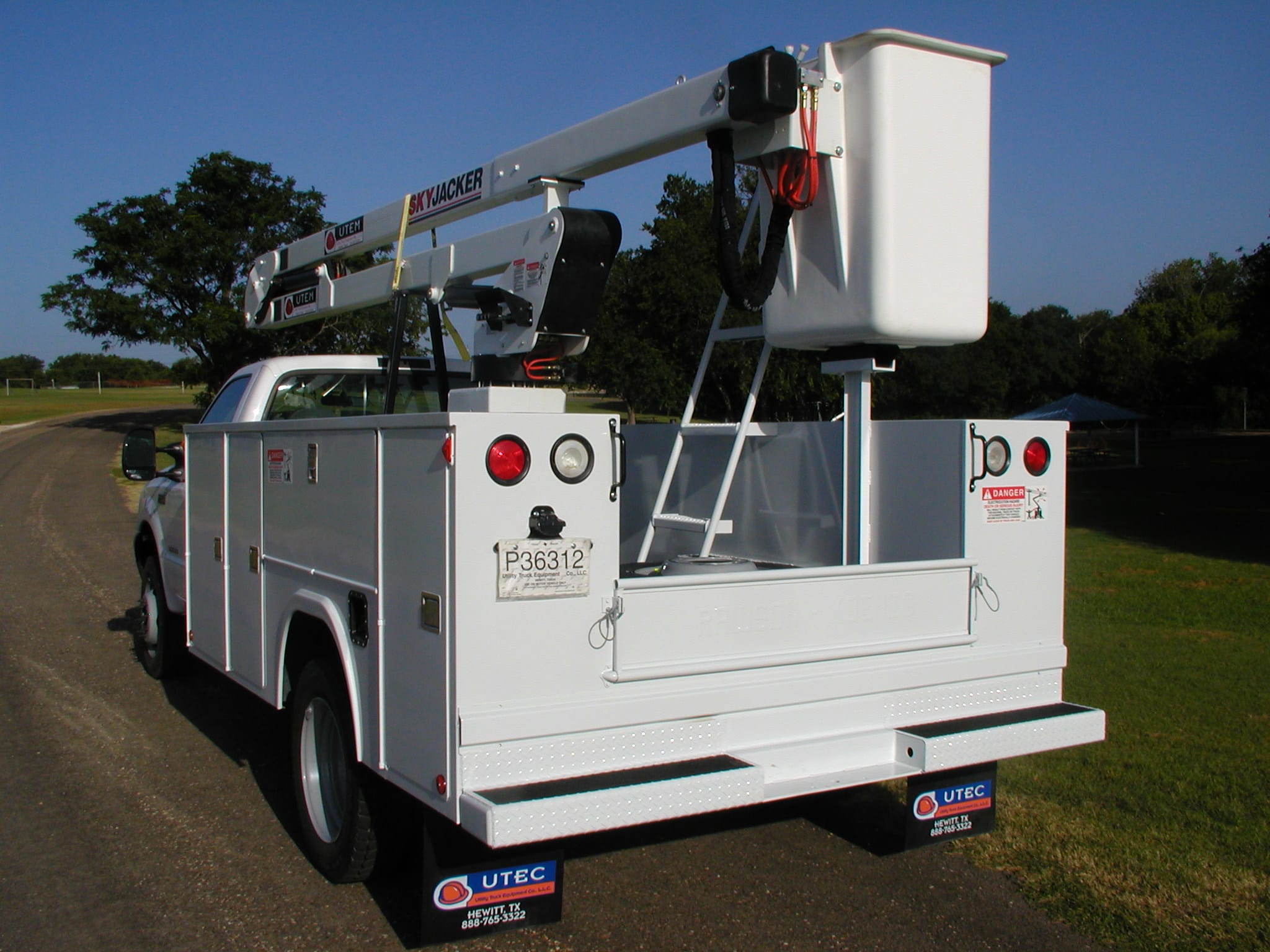

The UTEM SkyJacker is a series of articulated, non-overcenter aerial devices built for everyday utility work—power lines, lighting, signage, and all the tasks municipalities, school districts, universities, and contractors tackle daily. With four available models, insulated or non-insulated options, and industry-proven hydraulic performance, SkyJacker delivers steady lift power without unnecessary complication.
Working Height:
30 ft 6 in – 43 ft 4 in
Horizontal Reach:
15 ft 4 in – 22 ft 5 in
Basket Capacity:
350 lbs
* dimensions vary according to model number and options
SkyJacker Features
- Articulated non-overcenter boom design
- Insulated and non-insulated configurations
- Smooth, reliable hydraulic operation
- Upper and lower controls for safe, simple operation
- ANSI-compliant fall-arrest anchor in the basket
- Continuous rotation on select models
- Clean hose routing for reduced maintenance
- High-strength steel boom construction
- Compatible with multiple chassis platforms
- Built for technicians who need reliability, not complexity
Applications
Wherever everyday aerial work happens, SkyJacker gets it done.
REQUIREMENTS AND SPECIFICATIONS
Dimensional Specifications
| UJI/UJN3014 | UJI/UJN3416 | UJI/UJN3818 | UJI/UJN4321 | |
|---|---|---|---|---|
| Basket to bottom Height (1) | 25 ft 6 in (7.77m) | 29 ft 6 in (8.99m) | 33 ft 5 in(2) (10.19m) | 38 ft 4 in (10.19m) |
| Working Height (1) | 30 ft 6 in (9.3m) | 34 ft 6 in (10.58m) | 38ft 5 in(2) (11.71m) | 43ft 5 in (13.211m) |
| Horizontal Side Reach | 15 ft 4 in (4.67m) | 17 ft 6 in (5.33m) | 19 ft 8 in (5.99m) | 22ft 5 in (6.83m) |
| Unit Weight (4) | 1500lbs (682kg) | 1600 lbs (727kg) | 1700 lbs (773kg) | 1825lbs (830kg) |
| Stowed Travel Height (1) | 10 ft 4 in (3.15m) | 10ft 4 in (3.15m) | 10ft 4 in (3.15m) | 10ft 4 in (3.15m) |
| Upper Boom Articulation (3) | 1600 | 1600 | 1600 | 1600 |
| Lower Boom Articulation | -50 to 950 | -50 to 950 | -50 to 950 | -50 to 950 |
1 Based on 36 in (.91m) chassis frame height
2 Add 7 in (.18m) with chassis isolation
3 Relative the the lower boom
4 Based on “HE” hydraulic power packages and pedestal main frame
( Add 300 lbs (159 kg) for units with optional “DP” or “EH” hydraulic power package)
(Add 100 lbs (46kg) for units with optional bridge main frame)
5 Estimated weight for stability Actual weight for stability must be determined by testing in accordance with ANSI A92.2 A92.2-1900 standard.
Chassis Requirements
| UJI/UJN3014 | UJI/UJN3416 | UJI/UJN3818 | UJI/UJN4321 | |
|---|---|---|---|---|
| Minimum GVWR | 10100 lbs (459kg) | 29 ft 6 in (8.99m) | 33 ft 5 in (10.19m) | 38 ft 4 in (10.19m) |
| Front Axel GAWR | 4000 lbs (1818kg) | 34 ft 6 in (10.58m) | 38ft 5 in (11.71m) | 43ft 5 in (13.211m) |
| Rear Axel GAWR | 7500 lbs (3409kg) | 17 ft 6 in (5.33m) | 19 ft 8 in (5.99m) | 22ft 5 in (6.83m) |
| Minimum Curb Weight (5) | 7100 lbs 3227kg) | 8800 lbs (4000kg) | 10000 lbs (4545kg) | 11000lbs(5000kg) |
5 Estimated weight for stability Actual weight for stability must be determined by testing in accordance with ANSI A92.2 A92.2-1900 standard.
General Specifications
Electrical System
12 Volts DC
Design Voltage
Category C, 46kV and below on UJI Models
Standard Insulation Gap for UJI models
42 in
Standard Basket Capacity
350 lbs (159kg)
Rotation
5400 non-continuous with mechanical stop
Operating Pressure – UJI/UJN 3414
2000 PSI (141kg/cm2)
Operating Pressure – UJI/UJN 3416
2200 PSI (155kg/cm2)
Operating Pressure – UJI/UJN 3818 and 4321
2500 PSI (176kg/cm2)
