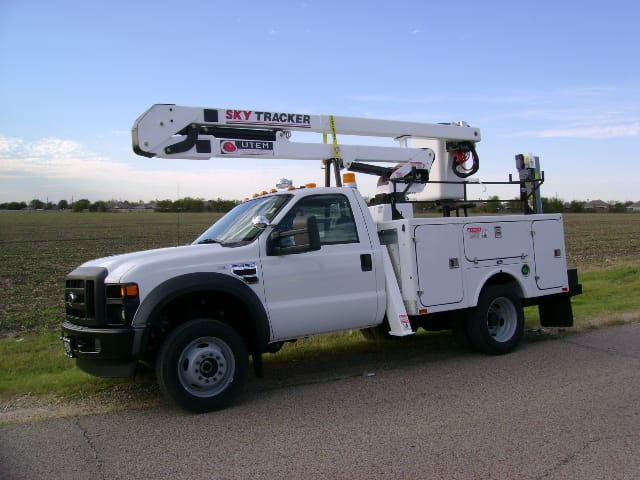

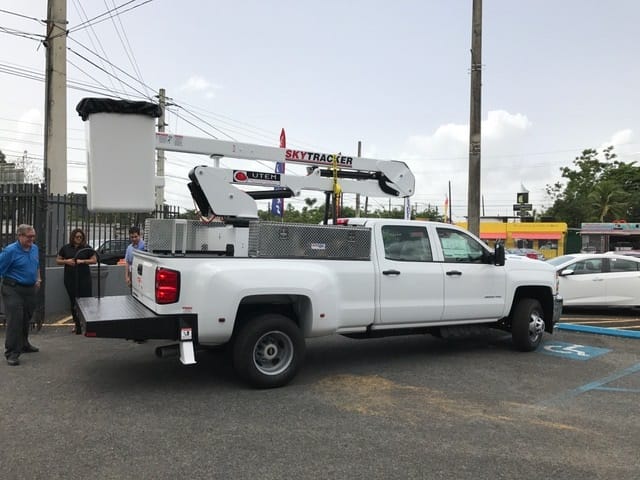

SkyTracker
The Overachiever Overcenter
The UTEM SkyTracker is a hard-working lineup of overcenter bucket trucks built for crews who need more side reach, full articulation, and dependable lift performance on either side of the truck. Available in two models—3424 and 3827—these articulating bucket trucks come in insulated and non-insulated configurations, making them ideal for utility work, telecom, and construction fleets needing a reliable insulated bucket truck or a high-reach construction bucket truck that shows up ready for real jobsite conditions.
Working Height:
34 ft 8 in – 38 ft 8 in
Horizontal Reach:
23 ft – 27 ft
Basket Capacity:
350 lbs
* dimensions vary according to model number and options
SkyTracker Features
- Overcenter articulating boom for maximum side reach
- Two model options: 3424 and 3827
- Insulated and non-insulated configurations
- Smooth, responsive hydraulic controls
- Upper and lower control stations for safe operation
- ANSI-compliant fall-arrest anchor point
- Continuous rotation on select configurations
- High-strength steel boom construction
- Clean hose routing for easy maintenance
- Stable operation across construction, telecom, and utility sites
- Flexible mounting across multiple chassis platforms
Applications

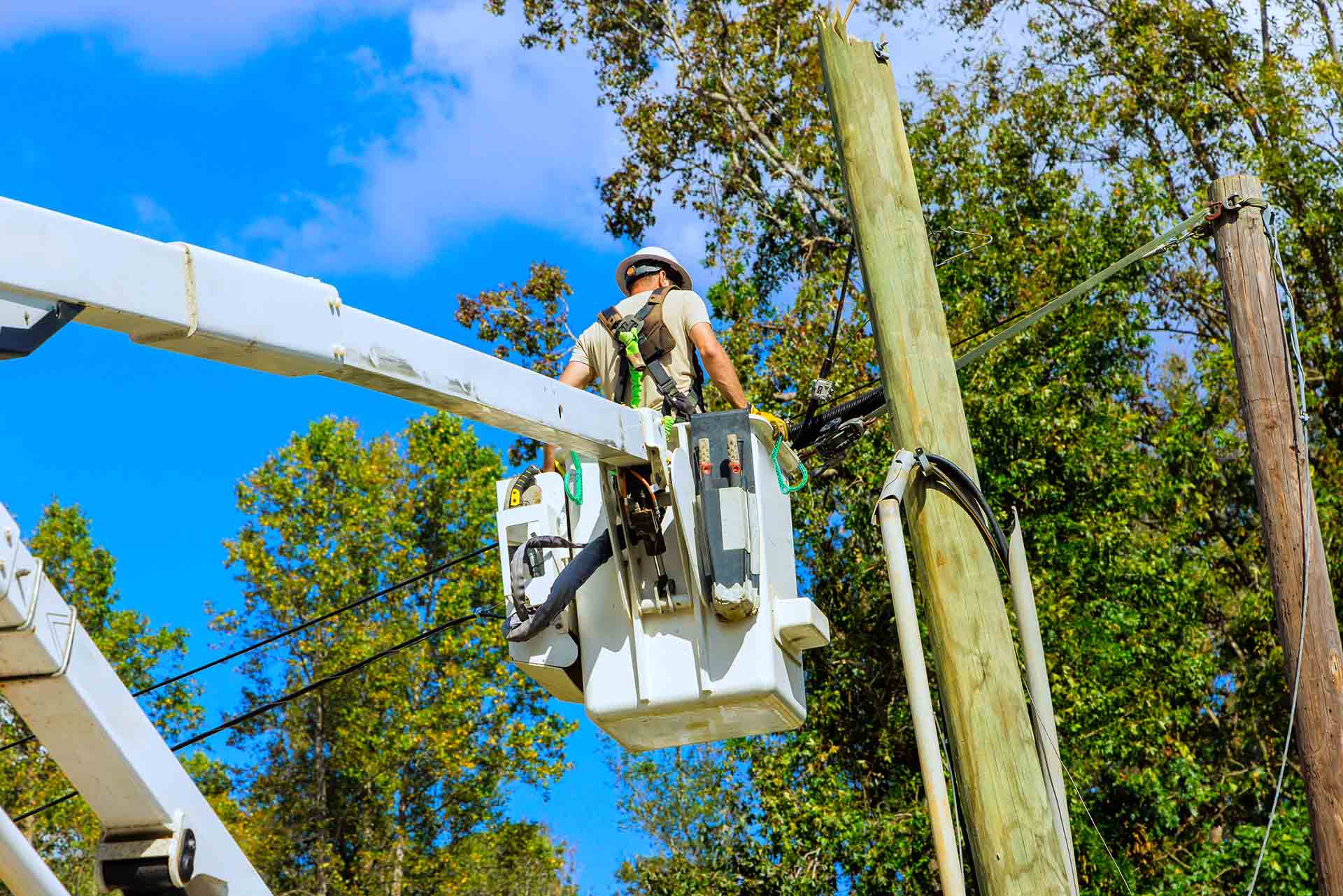

Where reach, articulation, and full-range positioning matter, SkyTracker delivers.
REQUIREMENTS AND SPECIFICATIONS
Pickup requirements
| UTN/UTI3424 | UTN/UTI3827 | |
|---|---|---|
| Basket Bottom Height 1 | 29 ft. 8 in. (9.04m) | 33 ft. 8 in. (10.25m) |
| Working Height 1 | 34 ft. 8 in. (10.56m) | 38 ft. 8 in. (11.78m) |
| Basket Capacity | 300 lbs. (136kg) | 300 lbs. (136kg) |
| Maximum Horizontal Reach | 23 ft. (7.01m) | 27 ft. (8.23m) |
| Upper Boom Articulation | 1800 Maximum Relative to Lower Boom | 1800 Maximum Relative to Lower Boom |
| Lower Boom Articulation | -80 to 930 | -80 to 930 |
| Standard Upper Boom Insulation Gap | 42 in. (1.07m) | 42 in. (1.07m) |
| Stowed Travel Height 1 | 10 ft. 3 in. (3.12m) | 10 ft. 3 in. (3.12m) |
| Electrical System Voltage | 12VDC | 12VDC |
| Rotation | 5400 Non-Continuous | 5400 Non-Continuous |
| Hydraulic System Operating Pressure | 2200 PSI (155kg/cm2) | 2500 PSI (176kg/cm2) |
| Unit Weight 2 | 1600 lbs. (726kg) | 1700 lbs. (771kg) |
1. Based on 36 in (0.91m) chassis frame height.
2. Configured with “HE” hydraulic power package and pedestal main frame.
Add 300 lbs. (136kg) for units with optional “DP” or “EH” hydraulic power package.
Add 100 lbs. (45kg) for units with optional bridge main frame.
