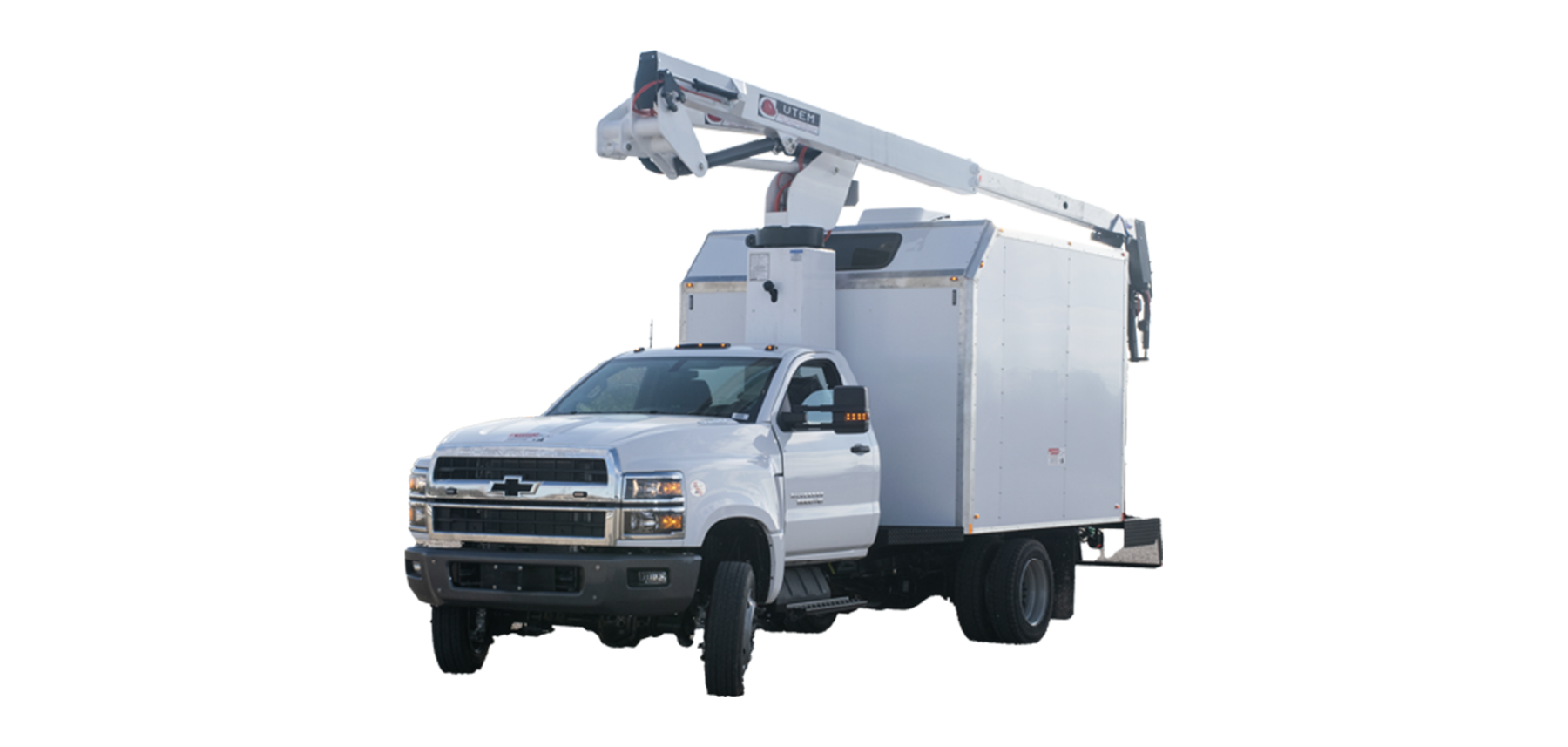

Aerial-Splicing Chassis (ASC)
Maximum Height. Maximum Workspace. Maximum Output.
Working Height:
43 ft 9 in
Horizontal Reach:
25 ft 4 in
Basket Capacity:
350 lbs
* dimensions vary according to model number and options

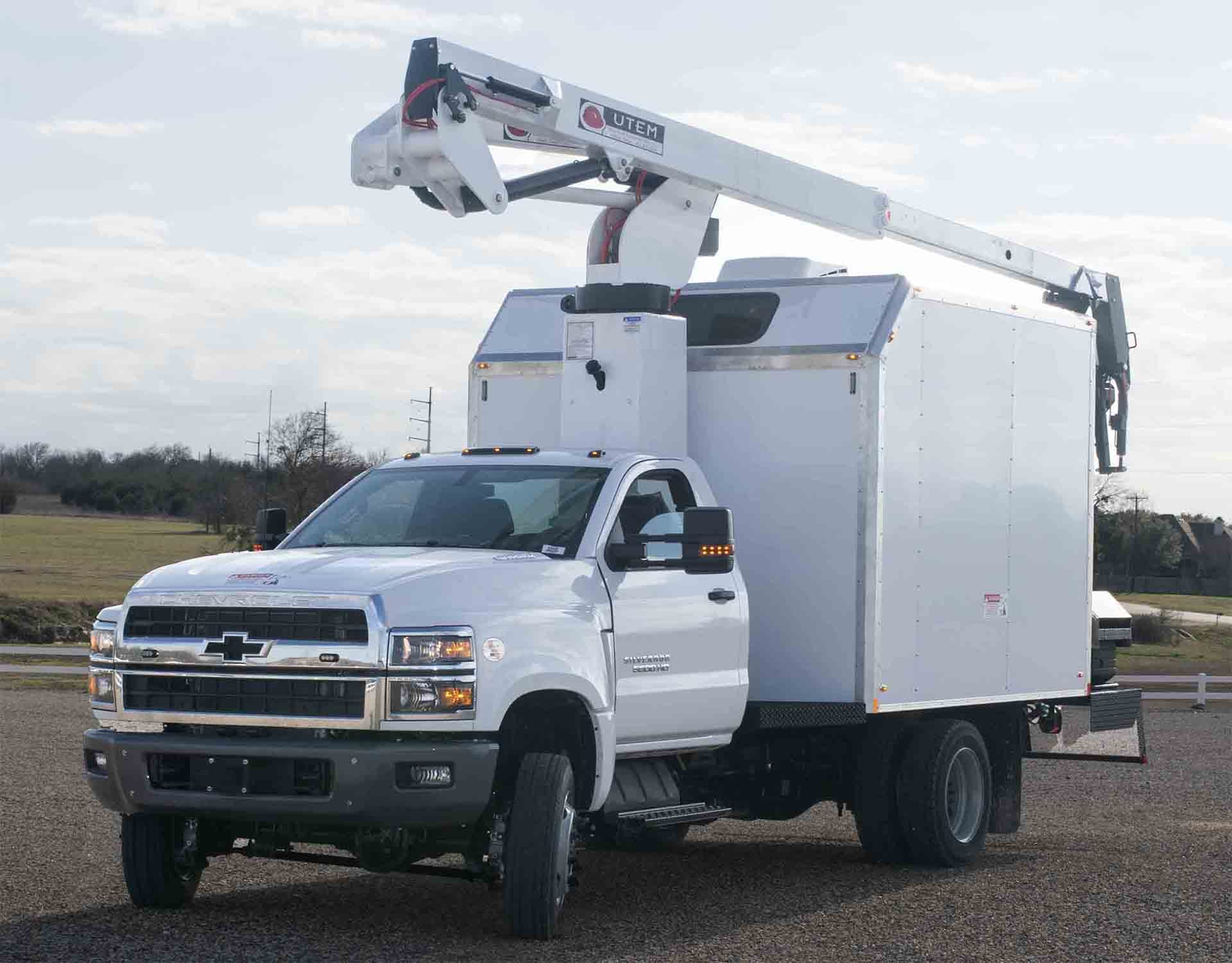

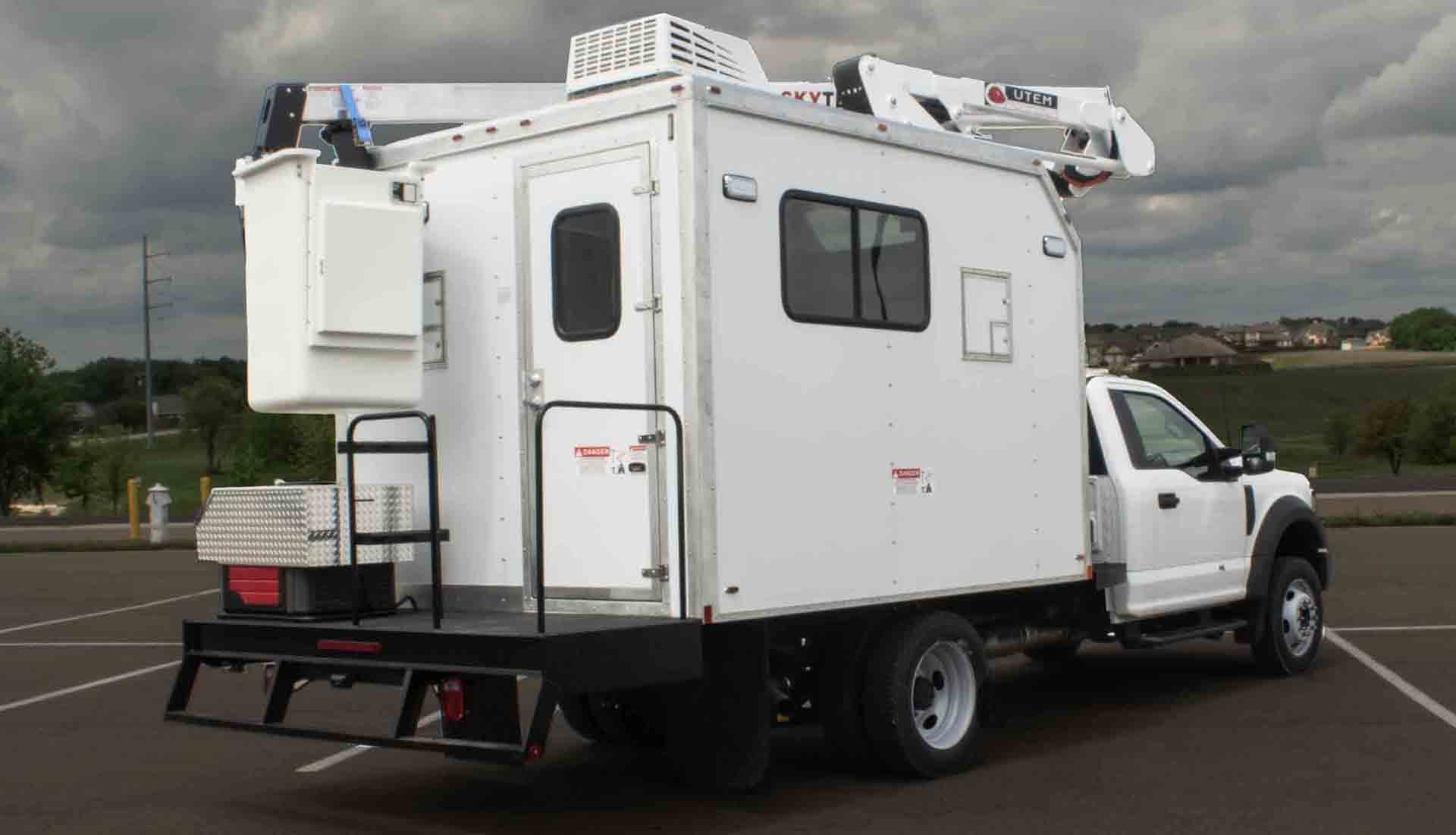

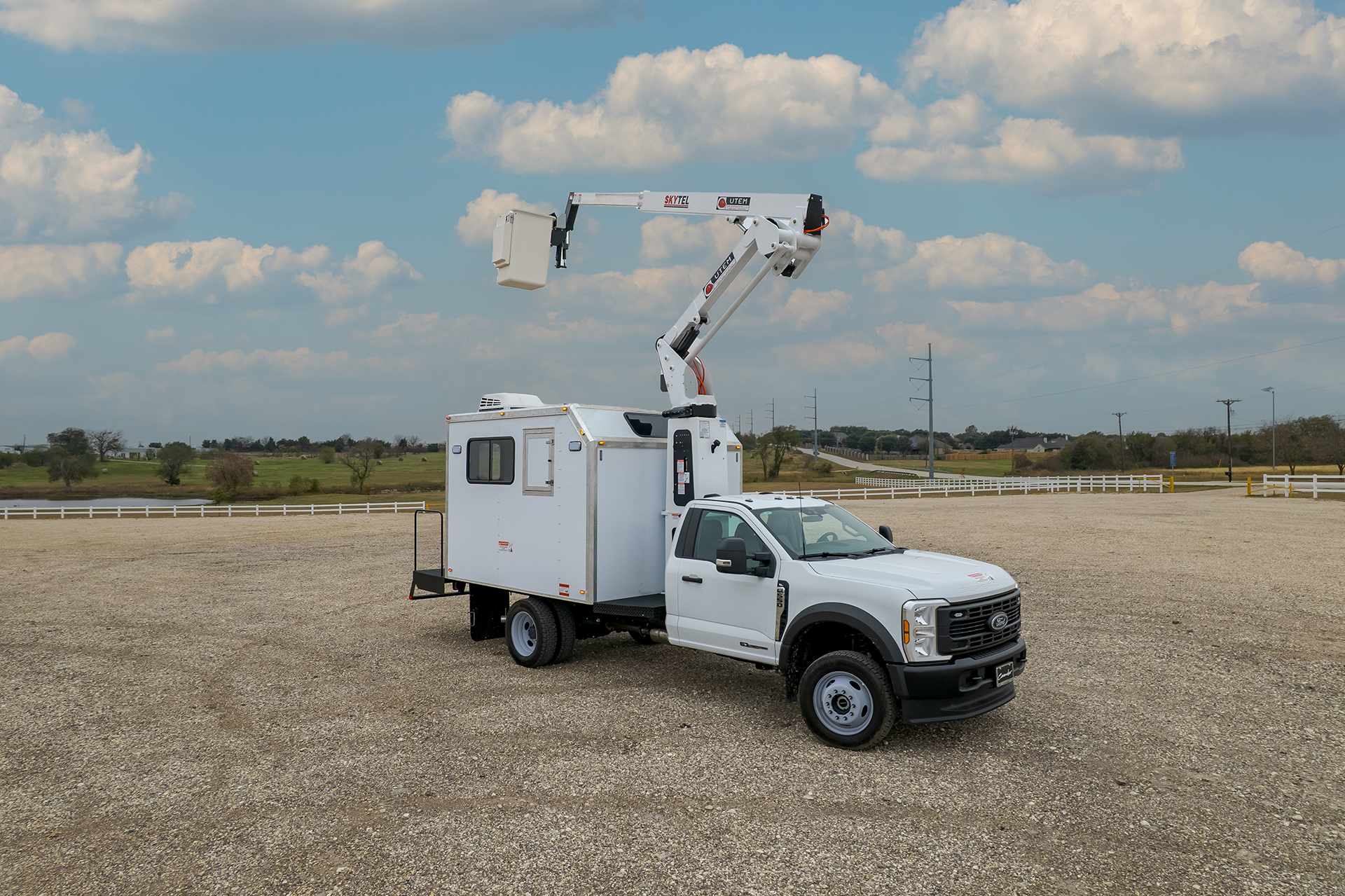

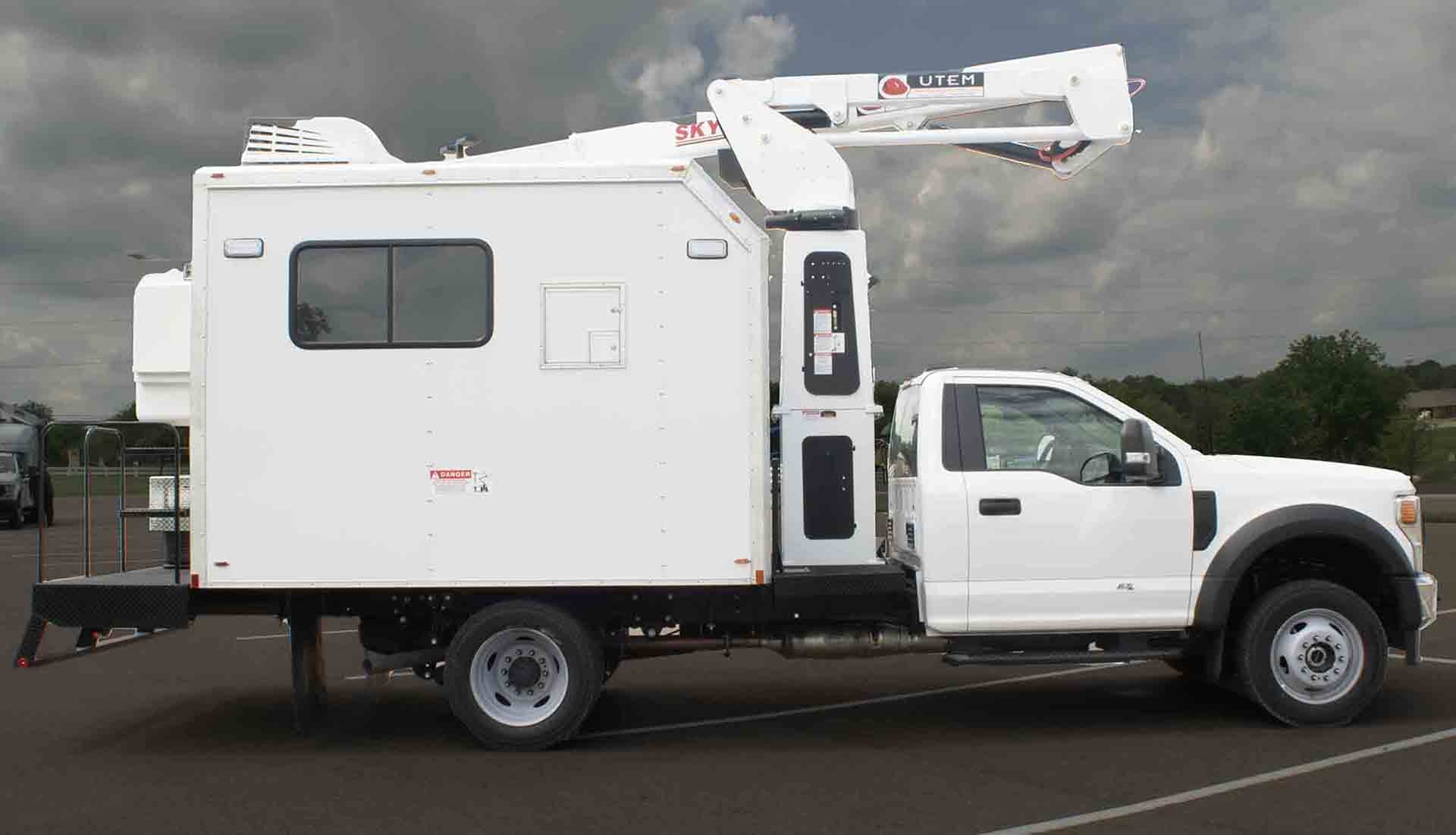

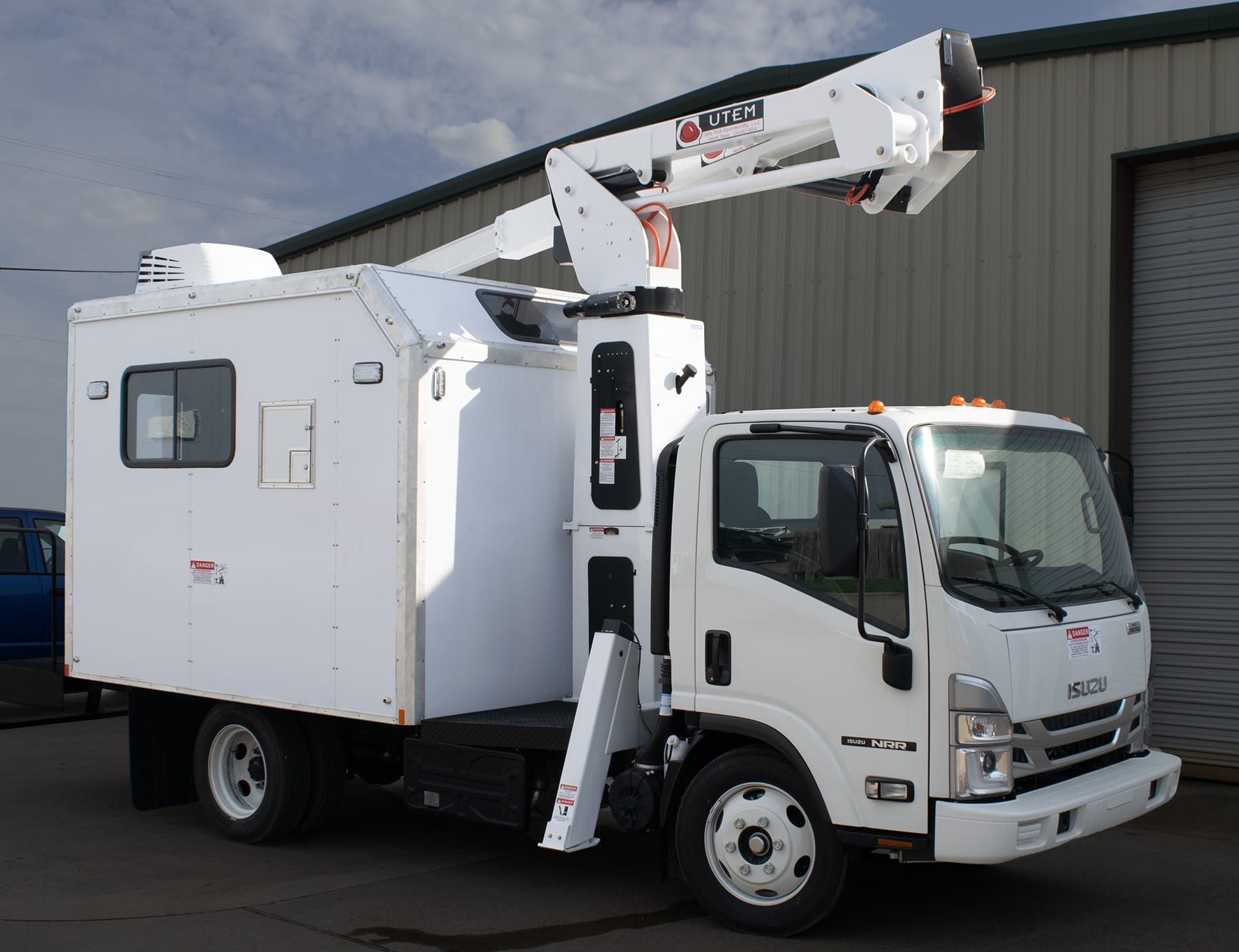

The UTEM ASC is a heavy-duty aerial splicing chassis built for crews who need more height, more lab space, and more capacity for demanding fiber builds. As a full chassis-mounted aerial splice unit, the ASC delivers a stable, powerful lift paired with a larger, more comfortable splice lab—all engineered on an aerial-ready telecom chassis platform that’s purpose-built for long days in the field. Whether you call it an Aerial Fiber Chassis Platform or the industry’s most capable splicing truck, the ASC gives telecom contractors, utilities, and ISPs serious reach, serious workspace, and serious output.
ASC Features
- Chassis-mounted design for increased height & stability
- Oversized, climate-controlled splice lab for all-day comfort
- Integrated telescopic aerial device with smooth hydraulic controls
- Upper and lower control stations
- Insulated and non-insulated options (model dependent)
- Clean hose routing & simplified service access
- High-strength boom and durable chassis platform
- Ideal for large fiber builds, multi-day jobs, and demanding installations
- Built for telecom & utility crews that need reach, workspace, and reliability
Applications
The ASC is built for the biggest jobs and longest days—when height, space, and stability matter.
REQUIREMENTS AND SPECIFICATIONS
General Specifications
Height To Bottom Basket
38′ 9″ (11.8 m)
Horizontal Side Reach
25′ 4″ (7.8 m)
Working Height
43′ 9″ (13.3 m)
Stowed Height
12′ 9″ (3.9 m)
Rotation
540 Degrees
Aerial Features
24V DC Powered Aerial/Belt Driven Pump
Electrical Tool Outlet at Basket
Emergency Lower 12V DC
Proportional Upper Controls w/ Single Handle Actuator
Side Mounted Walk-Thru Basket w/ Door
Lightweight Aluminum Inner Boom
Hydraulic Leveling Basket
Pedestal Riser Houses Hydraulic Reservoir and Batteries
UTLN35A meets and exceeds ANSI A92.2-2021 and OSHA Requirements

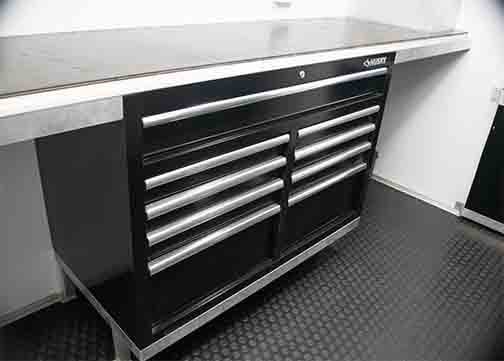

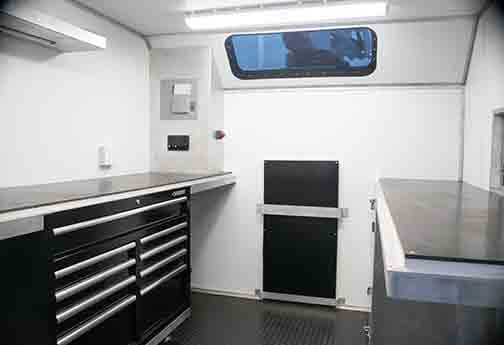

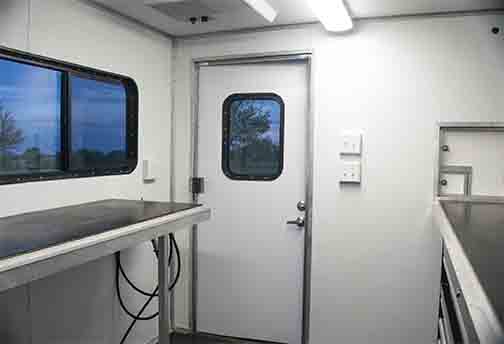

Lab Features
6′ 3″ Inner Body Height
505 Cubic Feet of Interior Space
