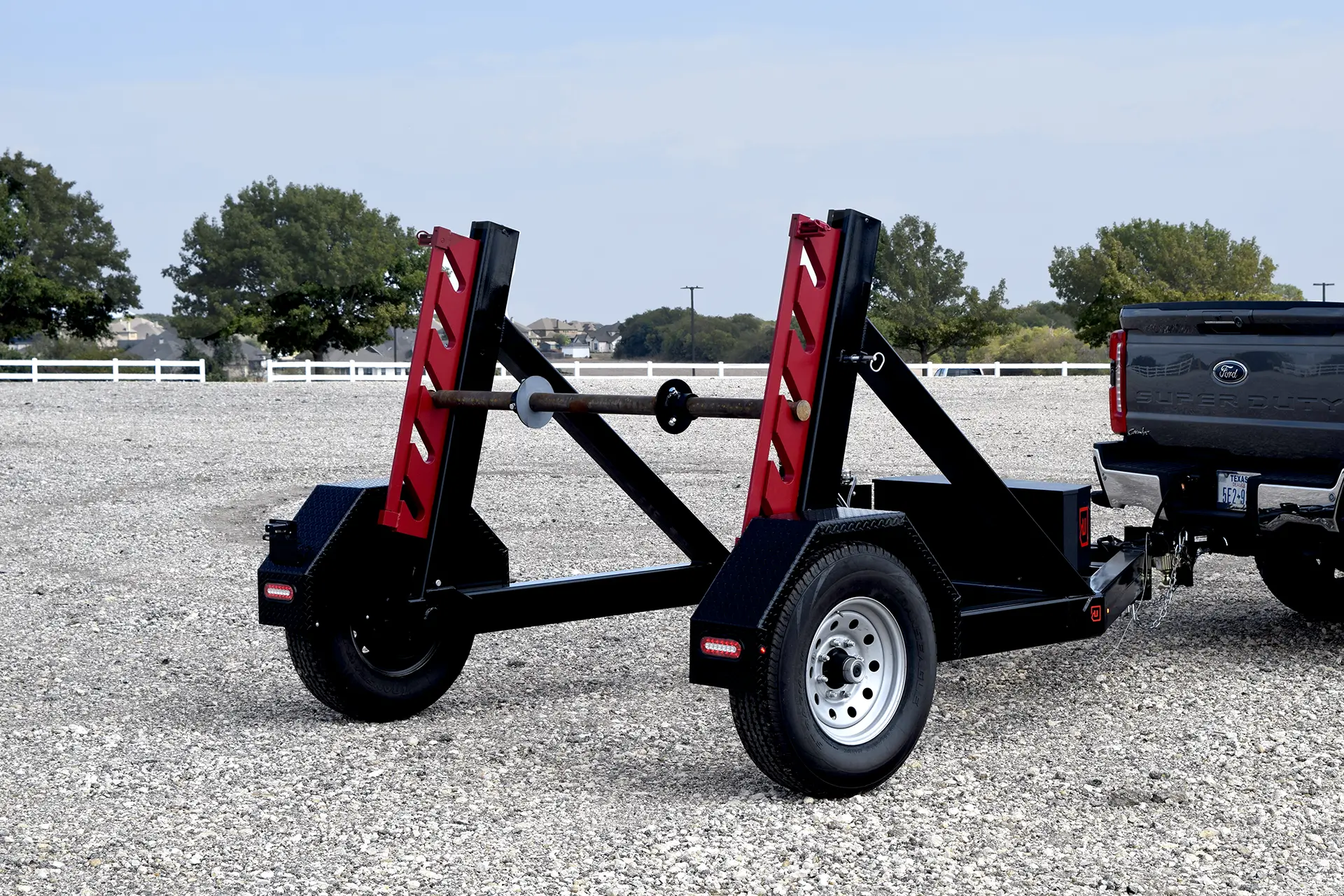

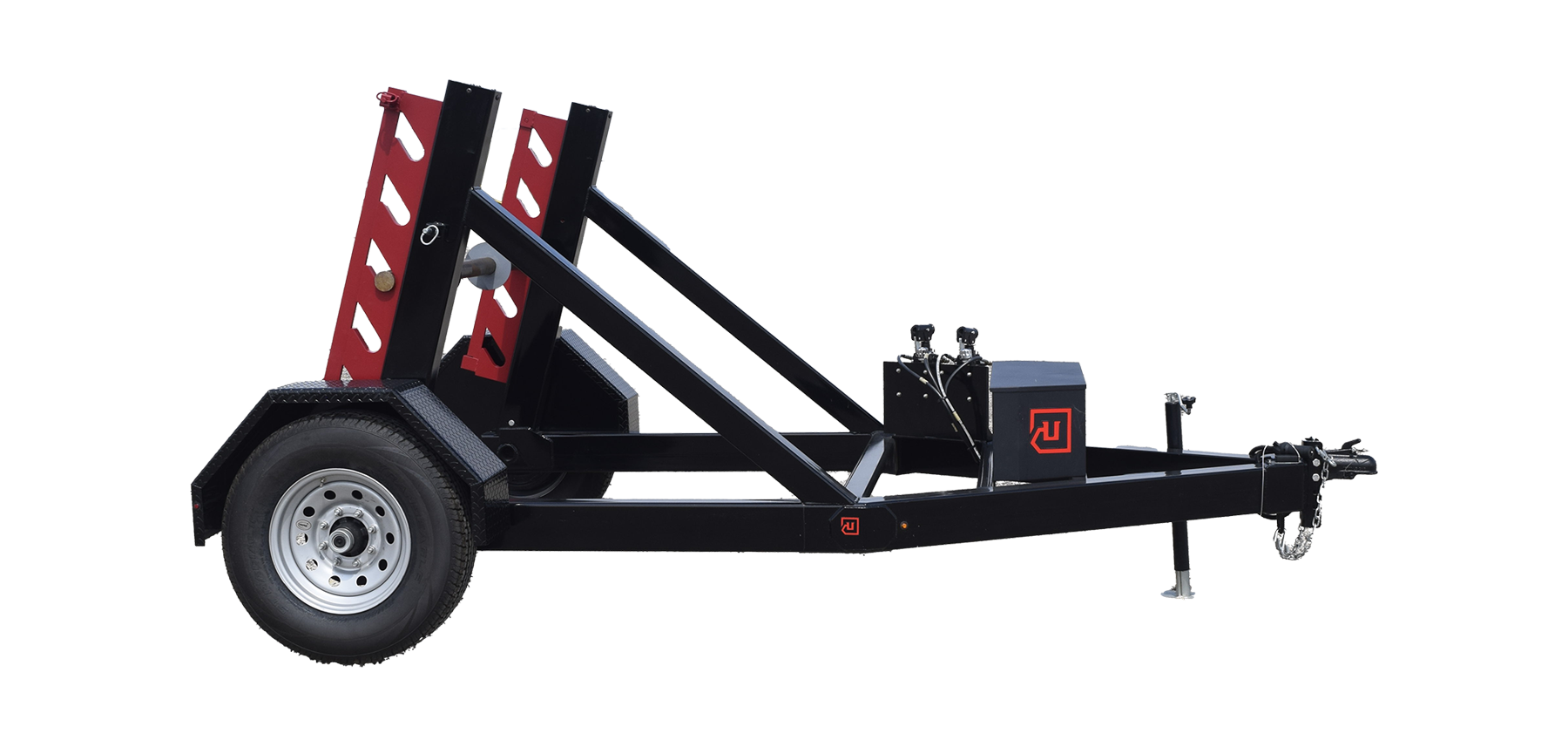

Manual Reel Loader Trailer (MRLT)
The Cable Reel Trailer Built for One-Person Crews
PAYLOAD CAPACITY:
Up to 10,000 lbs*
GVWR:
Up to 13,000 lbs*
EMPTY WEIGHT:
Up to 1,500 lbs*
*specifications vary according to model number and options
The MRLT is a manual cable reel trailer built for fiber and utility crews who need to load, haul, and deploy reels without tying up a second truck. One person handles the whole job — hook up, load, and go — in four capacities from 3,500 to 10,000 lbs payload.
Features
- Fast setup, even faster work
- One-person operation — no extra hands needed
- High-strength structural steel frame, fully welded
- Cross-member reinforced design
- Low center of gravity for stable towing
- Various spool sizes

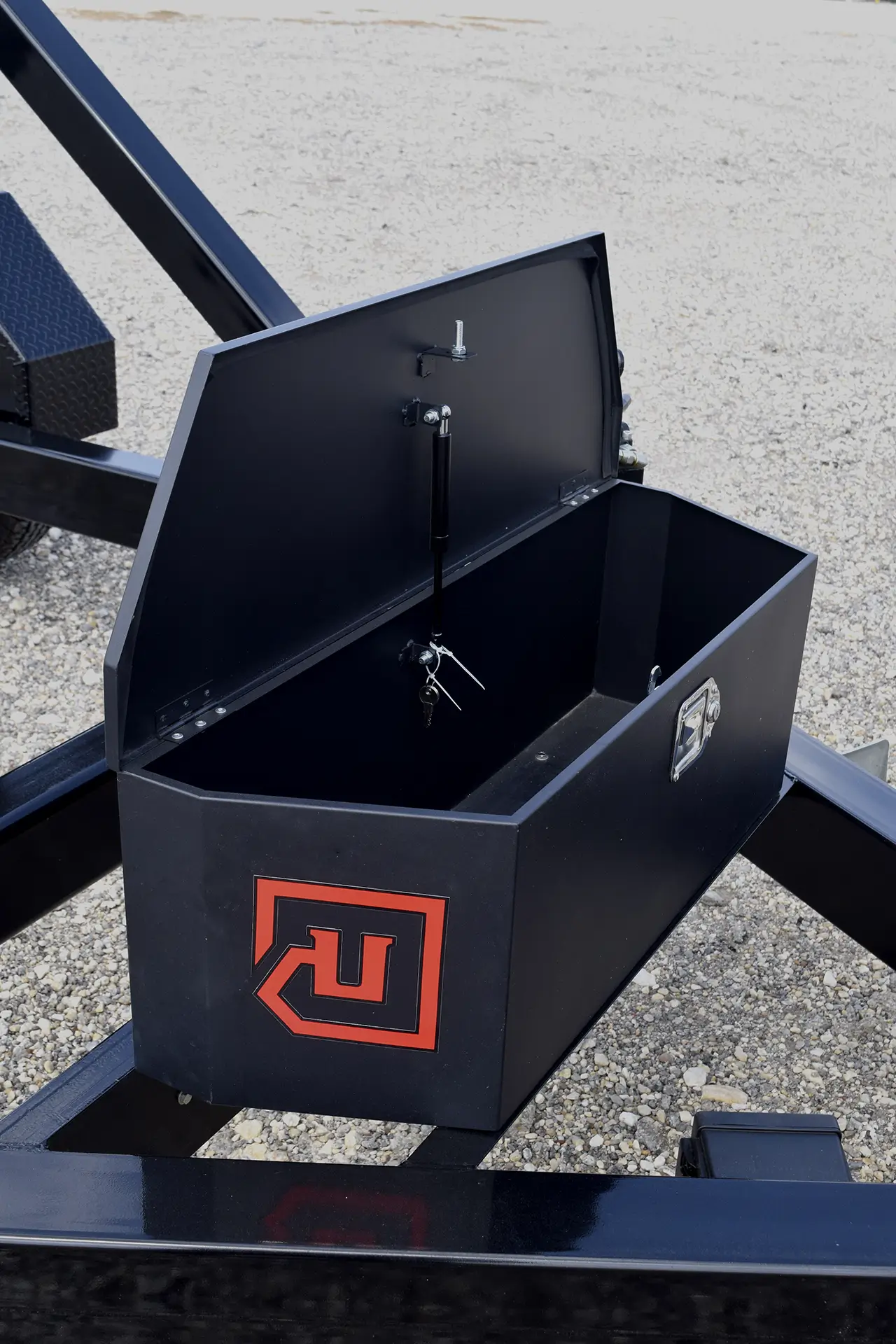

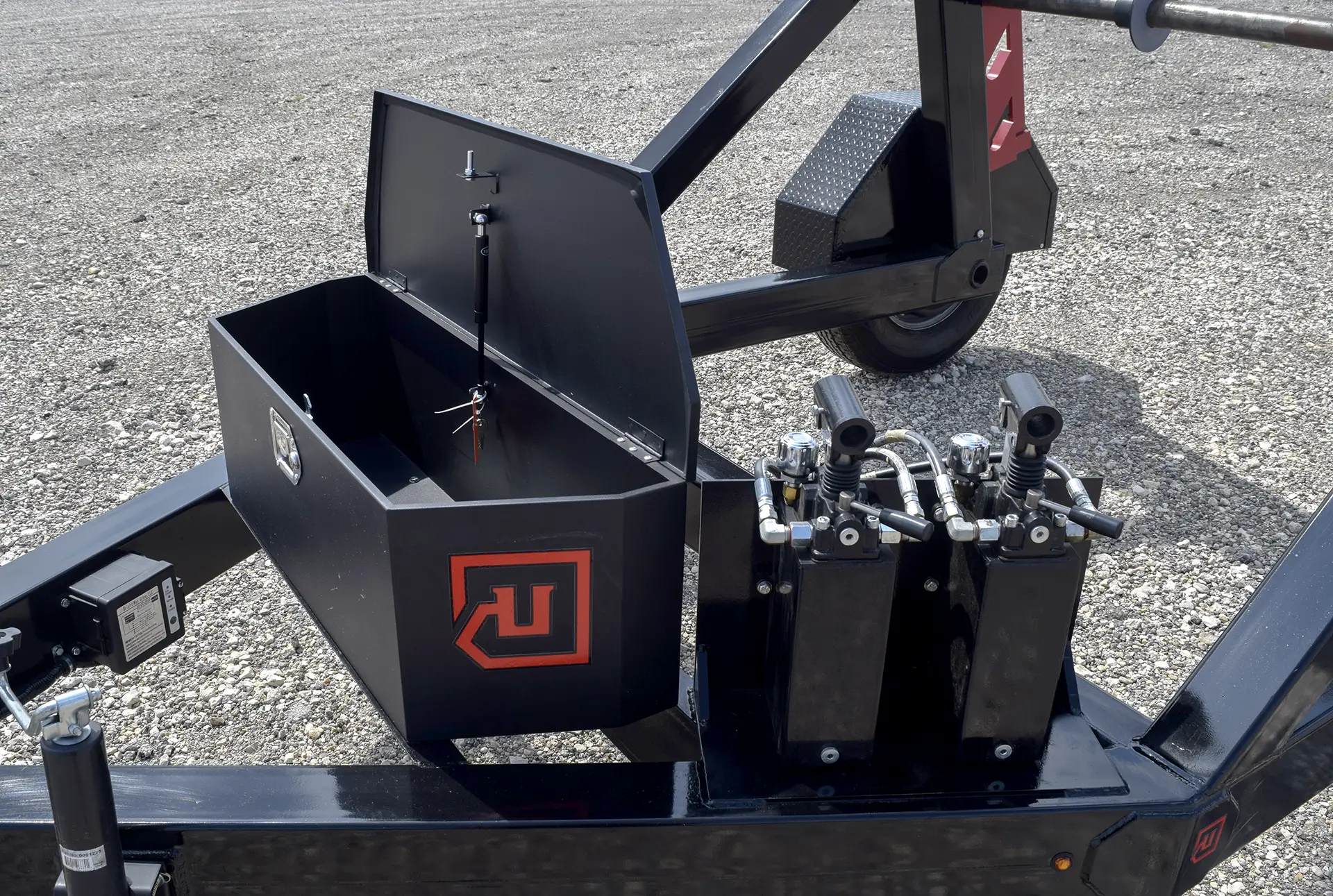

- Optional toolboxes for custom storage
- Customizable hitch, electrical connections, and colors
- 12-month structural frame warranty, plus component warranties per manufacturer
X

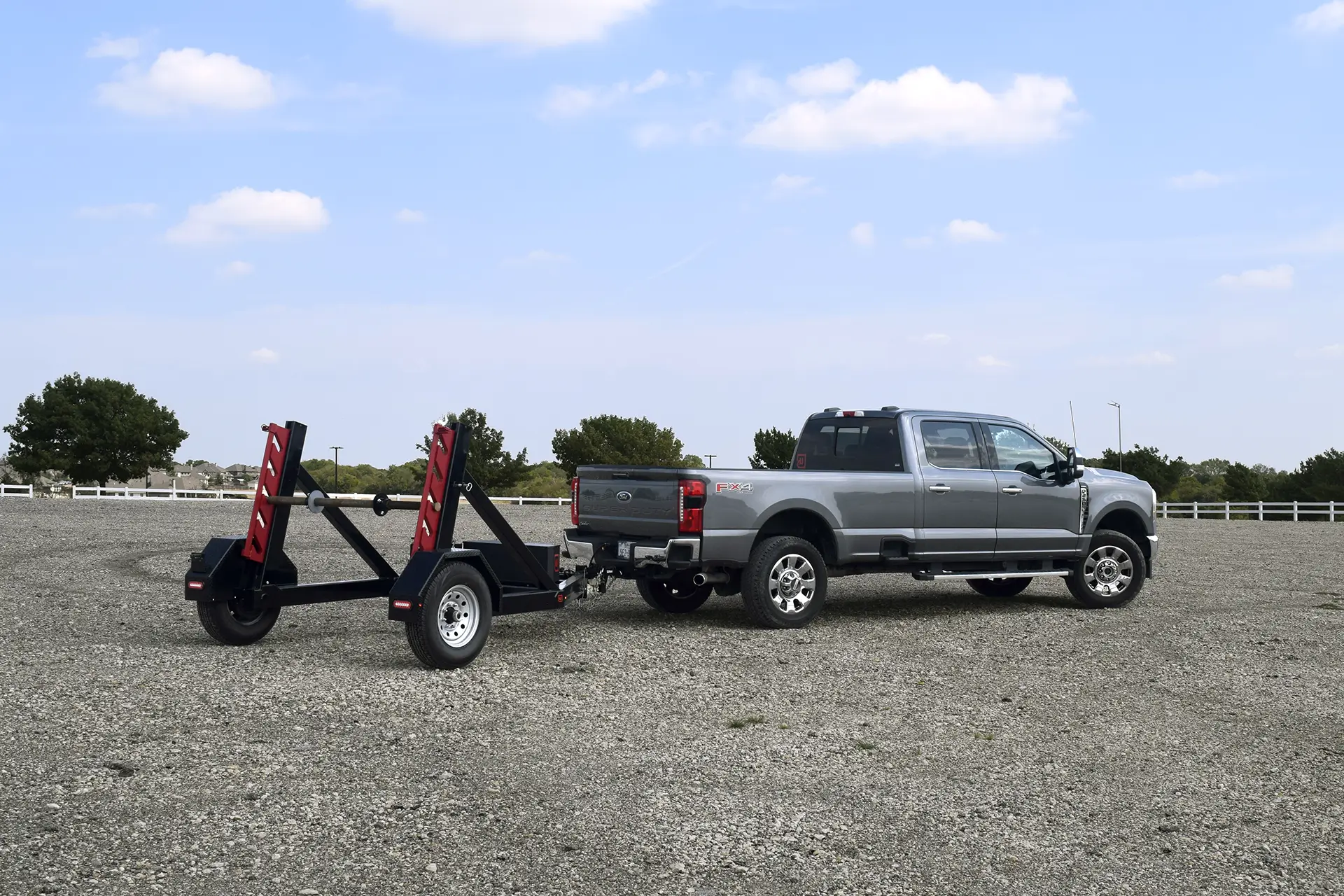

Applications
The RLT is built for tasks where cable reels rule the day—haul, load, position and deploy.
SPECIFICATIONS
Trailer Specifications
| Spec | MRLT-3 | MRLT-6 | MRLT-8 | MRLT-10 |
|---|---|---|---|---|
| Payload Capacity | 3,500 lbs | 6,000 lbs | 8,500 lbs | 10,000 lbs |
| GVWR | 5,700 lbs | 8,400 lbs | 11,150 lbs | 13,000 lbs |
| Empty Weight | 1,700 lbs | 1,900 lbs | 2,150 lbs | 1,500 lbs |
| Reel Width | 63″ (all models) | |||
| Reel Diameter | 120″ (all models) | |||
| Length | 12′ (all models) | |||
| Width | 94″ (all models) | |||
| Tires | 235/60 R16 (all models) |
